LEAN CONCEPT 200 plus

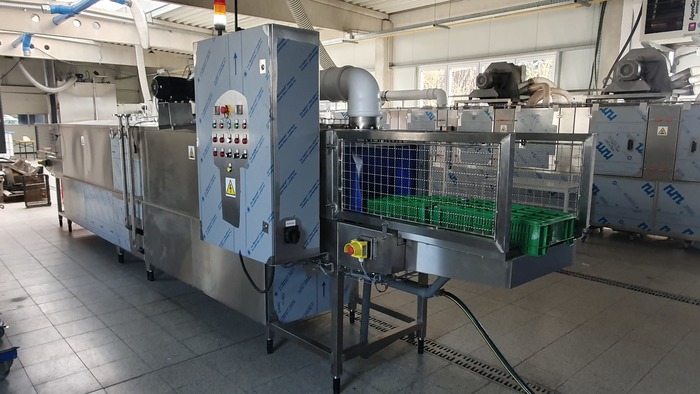

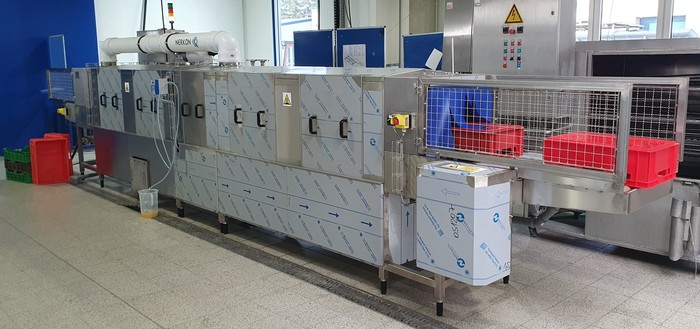

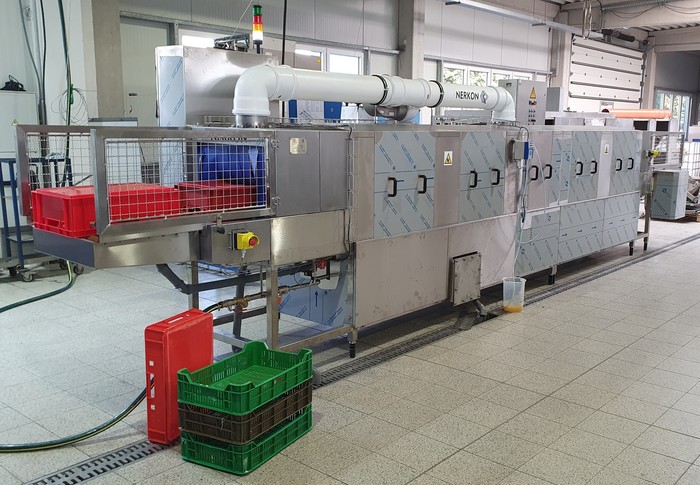

Continuous washing machine for crates E1, E2, and M10 , featuring a rinse with clean water and a cold air blow-off

Key advantages

• Washing of crates in a simple yet robust, compact machine
• Upper holder for washing Euro crates, sorted by height up to 200 mm
• Stainless steel control panel on the washing machine body with relay control
• Extension of the loading and unloading table with roller conveyors and protective mesh at the inlet and outlet.
• Vapor exhaust from the inlet of the machine and from the rinsing module
• Tank heating by a hot water register
• Reinforced washing pump (5.5 kW, approx. 4 bar)
• Pre-washing of the interior of the crates with clean water on the loading table to extend the service life of the wash bath.
• Washing agent dosing unit with conductivity probe
• Rinsing boiler with a hot water register
• Blow-off module with 2 x 4,0 kW ventilators
• Preparation for future installation of a tank extension with a rotary screen

Optional accessories

• Variable tank heating
• Thermal insulation of the wash tank
• Thermal insulation of the modules
• Pre-wash module
• Extension of the pre-wash module with a rotary screen
• Electric heating of the blow-off air

and more…
